Enterprise MuleSoft NetSuite Integration: Designing an API-Led Architecture for High-Volume ERP Data
Table of Contents
Quick Answer
A MuleSoft NetSuite integration uses APIs (system APIs that connect NetSuite to other applications, process APIs that apply business rules, and experience APIs that deliver data to end users) to integrate NetSuite with other systems. These systems can include Salesforce, warehouse platforms, ecommerce stores, or banks. With this API-led architecture, businesses can scale and work on high volumes of orders, invoices, and payments within NetSuite’s API limits.
Introduction
Many companies that run NetSuite connect it to Salesforce, warehouse systems, e-commerce platforms, and banks through custom scripts and point-to-point connectors. This approach can work well at lower volumes. As the number of orders and invoices grows, these connections may reach NetSuite’s API limits. When that happens, finance teams have to spend the month-end close finding and correcting irregular records.
MuleSoft NetSuite integration offers a more structured approach. Instead of separate connections for each system, integrations run through managed APIs that can be reused across applications. MuleSoft can queue and pace high-volume requests to stay within NetSuite’s limits, apply business rules in one place, and give IT and finance a single view of failed or delayed transactions. This guide covers how to design that architecture, what it typically costs, and how to decide whether it fits your environment.

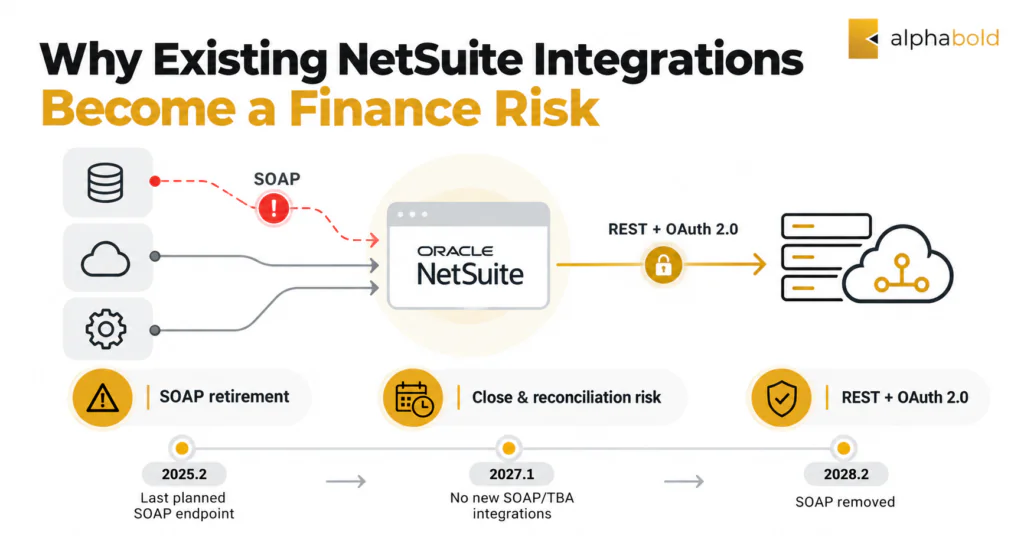

Why Are Existing NetSuite Integrations Becoming a Finance Risk?
Because Oracle is retiring the channel many of them run on, SOAP web services will be removed from NetSuite in the 2028.2 release, and any SOAP integration still in place will stop working. The key milestones:
- 2025.2: the last planned SOAP endpoint. Oracle releases later SOAP endpoints only if a significant business or technical need requires it.
- 2027.1: no new integrations can be built on SOAP, and no new integrations can use token-based authentication (TBA) for SOAP, REST, or RESTlets.
- 2028.2: SOAP is removed, and remaining SOAP integrations stop working. Oracle’s replacement is SuiteTalk REST web services with OAuth 2.0.
For CFOs, integration issues tend to surface during the close. Order-to-cash, procure-to-pay, intercompany transactions, and revenue data all depend on these connections. When one fails near quarter-end, it can lead to late entries, balances that don’t reconcile, and additional questions from auditors.
For teams already using MuleSoft, the existing Anypoint Connector for NetSuite is built on the SuiteTalk SOAP WSDL. Version 12.0.0 introduced Java 17 requirements in May 2026, with subsequent updates released since then. On August 30, 2026, MuleSoft released a separate NetSuite REST Connector for Mule 4.6.0 and later, providing teams with a supported REST option. Moving to it requires reviewing and updating existing flows and switching authentication to OAuth 2.0.
What Does an API-Led MuleSoft NetSuite Integration Look Like?
It splits integration logic into three reusable layers: system APIs that connect to NetSuite and other applications, process APIs that hold business rules, and experience APIs that serve each consuming channel. Each layer can change without breaking the others.
- System APIs: one per backend. The NetSuite system API wraps REST record calls, SuiteQL queries, and any RESTlets, manages OAuth 2.0 and retries, and keeps NetSuite’s data model away from everything upstream. MuleSoft’s NetSuite REST Connector supports record operations such as creating, retrieving, updating, and deleting records, along with SuiteQL queries. High-volume processing still requires appropriate batching and concurrency management to remain within NetSuite’s API limits.
- Process APIs: order-to-cash, procure-to-pay, customer and item master sync, and intercompany flows. Subsidiary mapping, currency handling, and tax logic are defined once here.
- Experience APIs: shaped for Salesforce, the storefront, a partner portal, or an AI agent, each pulling from the same governed process APIs.
The finance benefit is containment. An API-led architecture can limit the impact of changes to NetSuite endpoints or authentication methods by isolating them within the system API. However, migrating from SOAP to REST may also require updates to data mappings, supported operations, and testing. Stable API contracts help minimize disruption to downstream applications.
How Do You Handle High-Volume ERP Data Without Hitting NetSuite Limits?
Design around NetSuite’s account-wide concurrency limit first. Every SOAP, REST, and RESTlet request from every connected application draws from a shared pool, so MuleSoft has to throttle, queue, and batch rather than pushing records as fast as they arrive.
- Allocate concurrency per integration under Setup > Integration > Integration Management > Integration Governance, so one heavy flow cannot starve the others.
- Queue inbound events with Anypoint MQ or a similar broker and drain them at a controlled rate.
- Use SuiteQL for bulk reads instead of record-by-record calls. A one-to-one SOAP-to-REST rewrite can sharply increase API call volume.
- Batch and schedule heavy loads such as item updates and historical syncs outside close windows.
- Build idempotency and retries. MuleSoft’s SOAP-based NetSuite connector includes concurrency management and exponential retries; the same retry logic should be implemented in the NetSuite system API when you move to REST.
- Route failures to a dead-letter queue with alerts, so finance sees exceptions before reconciliation instead of during it.
If volume consistently exceeds the pool, the fix is usually licensing. Each SuiteCloud Plus license adds 10 concurrent requests to the account base limit set by your service tier, and that cost should be included in the business case.
Assess Your NetSuite Integrations with AlphaBOLD
Our NetSuite team can review your current integrations, identify SOAP exposure, and assess concurrency limits so you have a clear plan for migration and scaling.
Request a ConsultationWhat Should CFOs Weigh Before Choosing MuleSoft for NetSuite?
MuleSoft NetSuite integration is usually a good fit when NetSuite is one of many connected systems, the same data feeds several channels, and your business needs strong governance and audit trails. If you only need a few simple connections, MuleSoft may offer more than your business needs, and a lighter integration tool could be more cost-effective.
| Decision factor | MuleSoft API-led is a strong fit | A lighter option may be enough |
|---|---|---|
|
Connected systems |
CRM, WMS, e-commerce, banks, data warehouse |
Two or three applications |
|
Salesforce footprint |
Already on Salesforce or Agentforce |
No Salesforce investment |
|
Transaction profile |
High, spiky, multi-subsidiary volume |
Low and predictable volume |
|
Governance needs |
API policies, monitoring and reuse |
Basic logging is sufficient |
|
Team capacity |
In-house integration team or partner |
Admin-level support only |
When building the business case, account for these cost drivers:
- MuleSoft subscription, quoted by Salesforce based on capacity and usage.
- SuiteCloud Plus licenses if concurrency is already constrained.
- Build effort for system, process, and experience APIs.
- SOAP-to-REST rework of existing flows before 2028.2.
- Ongoing monitoring and support across two NetSuite releases per year.
Why Does Integration Reliability Matter for ERP and AI?
Unreliable data exacts a measurable price and now impedes AI adoption and accurate reporting.
- MuleSoft’s 2026 Connectivity Benchmark Report found the average organization manages 957 applications with only 27% connected, and 82% of IT leaders name data integration as one of their biggest challenges in using AI.
- Oracle’s SOAP web services documentation confirms existing SOAP integrations stop working with the 2028.2 release.
This matters more after NetSuite 2026.2, which expands Ask Oracle and agent-driven integrations. Those features are only as reliable as the data flowing into the ERP.
You May Also Like: NetSuite AI Connector Service: How It Works
How Should You Sequence a MuleSoft NetSuite Integration Project?
Start with an inventory, build the NetSuite system API on REST and OAuth 2.0, then migrate the highest-risk finance flows first.
- Inventory every integration touching NetSuite, its protocol, and its authentication method. The SOAP Web Services Usage Log is the starting point.
- Move remaining SOAP flows to the 2025.2 endpoint to secure the longest support window while REST work is underway.
- Build the NetSuite system API on the MuleSoft NetSuite REST Connector with OAuth 2.0.
- Migrate finance-critical flows first: order-to-cash, AP, and intercompany.
- Test each NetSuite release in a Release Preview account before it reaches production.
- Retire SOAP flows well ahead of 2028.2. Our guide on Oracle’s SOAP web services deprecation covers the timeline in more detail.
You May Also Like: Data Migration Strategies: NetSuite Lessons Learned
Build a REST-Ready NetSuite Integration With MuleSoft
From mapping your existing SOAP integrations to designing an API-led MuleSoft architecture for NetSuite, our consultants can help you move to REST ahead of the 2027.1 cutoff.
Request a ConsultationConclusion
For companies moving large volumes of financial data, a MuleSoft NetSuite integration built on reusable API layers, REST, and OAuth 2.0 can simplify integration management while respecting NetSuite’s API limits. With SOAP retirement approaching, businesses should prioritize architectures that support reliable data exchange, centralized monitoring, and easier maintenance.
Waiting too long increases the risk of a rushed migration that overlaps with a close cycle. A practical first step is to list the integrations running today, assess whether MuleSoft makes sense for the size of your environment, and migrate finance-critical flows first.
Frequently Asked Questions
Does MuleSoft have a REST connector for NetSuite?
Yes. MuleSoft released the Anypoint Connector for NetSuite REST on August 30, 2026, and shipped version 1.0.1 on September 22, 2026. It works with Mule 4.6.0 and later, providing Mule applications with direct access to NetSuite’s REST API.
Will my current MuleSoft NetSuite integration stop working?
If it runs on the SOAP-based NetSuite connector, yes, once your account reaches the 2028.2 release. Flows need to move to REST web services with OAuth 2.0 before then.
Can we keep using token-based authentication?
Existing TBA integrations will continue to run for now, but starting with 2027.1, you cannot create new ones for SOAP, REST, or RESTlets. OAuth 2.0 is the method NetSuite recommends for all new work.
How does the MuleSoft NetSuite REST Connector authenticate?
It uses OAuth 2.0 Client Credentials (JWT Bearer). The connector signs a token request using a private key associated with a certificate registered in NetSuite, so no interactive user login is required.
Should we consider NetSuite Integration Platform instead?
It is worth comparing if NetSuite is your system of record and most flows start or end there. Its 2026.2 release added agent-driven orchestration in the Enterprise edition. MuleSoft makes more sense when many systems, including Salesforce, share the same APIs.
