BOLDAssembly – BOM Generator


Build-to-order and engineer-to-order manufacturing processes focus on building or designing finished products after an order is received. These production scenarios may apply to companies that produce tailored medical devices or custom industrial equipment and machine components. This article is relevant to manufacturing companies that process custom orders with frequent changes to product design and specifications. Also learn how BOLDAssembly gets you out of this ruckus with BOM generator.

To fulfill orders quickly, the production managers and engineers often need a rapid, just-in-time method of constructing a Bill of Materials (BOM) and sending the BOM specification and the traveler to the production floor.

ERP systems require the Assembly Item / BOM to be pre-configured and generated before it can be added to the Sales Order and subsequently a Work Order. This step is often cumbersome and predicated on some understanding of the item’s accounting impact before it can be completed. As a result, production managers and administrators often struggle to configure the Assembly Item correctly and this introduces unnecessary delays in the order fulfillment.

After some research and deeper discussions with our clients, we saw a need to develop a tool on top of NetSuite’s platform that will allow users to easily generate Assembly Items from the order screen.

In this article, I will walk you through our BOM Generator tool in hopes that it may inspire you to add new efficiencies to your production. We believe that BOM creation in NetSuite should be simple, intuitive and fast.

I will start by:

  1. Explaining how the tool works
  2. Its configuration
  3. Its features and improvements in works

How Does BOM Generator It Work?

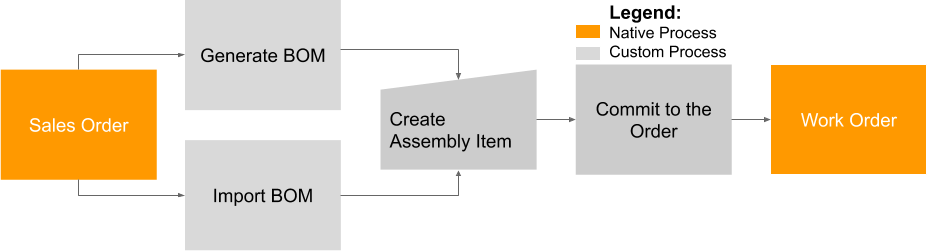

The following diagram illustrates the basic, high-level process of creating Assembly Items directly from the order screen.

Infographics show the BOM assembly flow

Let’s walk through this in detail.

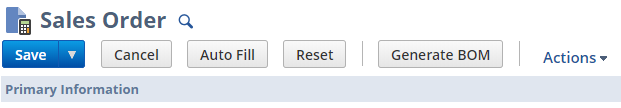

  • When a Sales Order is in the ‘edit’ mode and while it’s pending approval, the user will see [Generate BOM] button.
Infographics show the Sales Order
  • By clicking the [Generate BOM] button, a pop-up screen will appear.

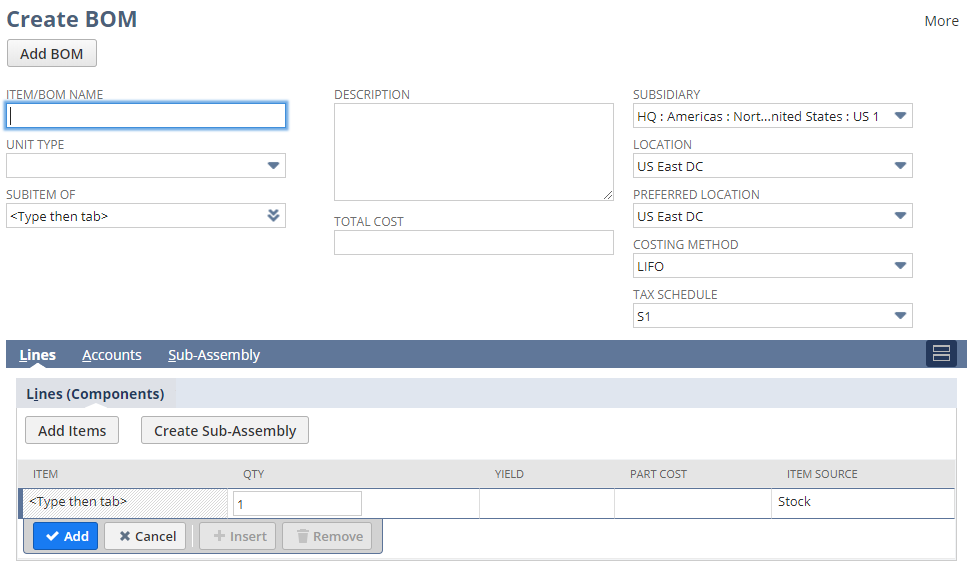

Infographics show the Generate BOM
  • The user can enter the new SKU number in the ‘Item/BOM name’ field and then start selecting the components for this Assembly Item record ([Add Items] button).

Read More: Manufacturing Efficiency with NetSuite Advanced Bill of Materials

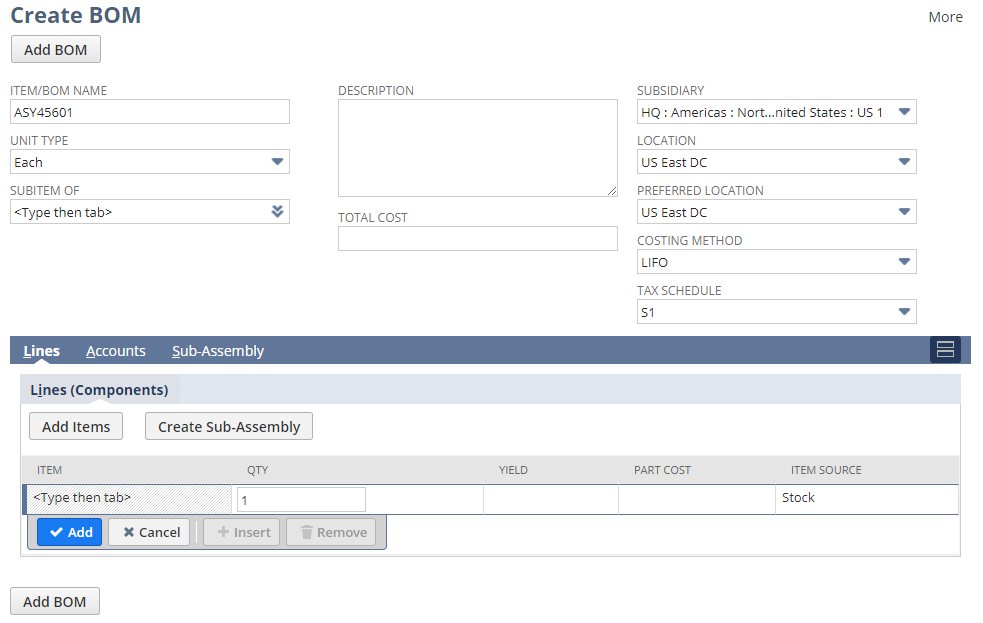

Infographics show the create bom generator
Infographics show the User Guide for NetSuite Solutions

User Guide for NetSuite Pricing: All You Need to Know

All you need to know about NetSuite pricing! Explore our user guide for comprehensive insights.

Download Guide

  • The user can enter the new SKU number in the ‘Item/BOM name’ field and then start selecting the components for this Assembly Item record ([Add Items] button).

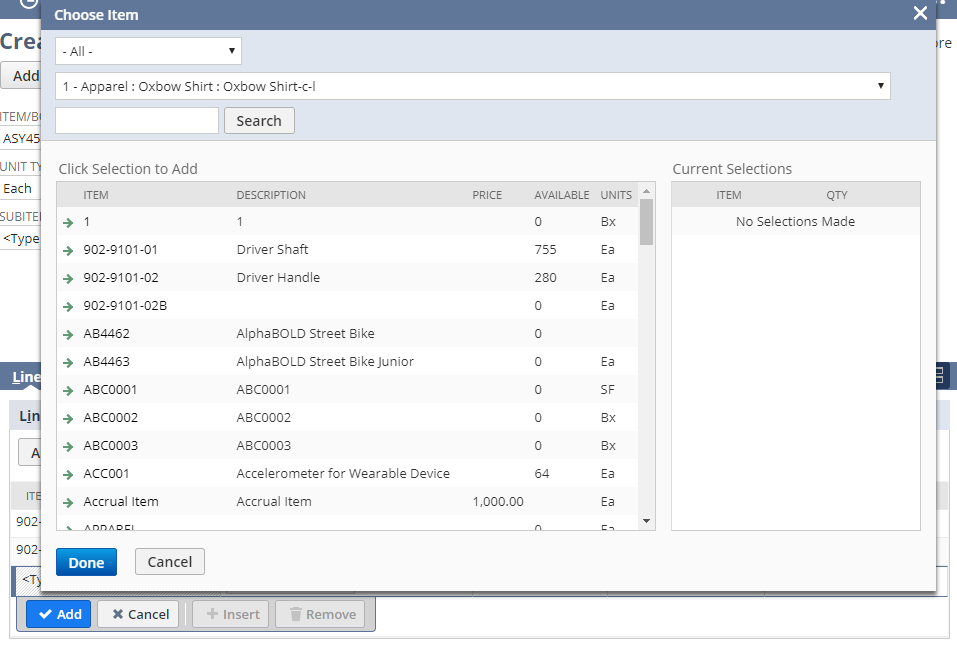

Infographics show the choose item
  • Clicking on [Add BOM] button will generate Item / BOM record and then complete the process.

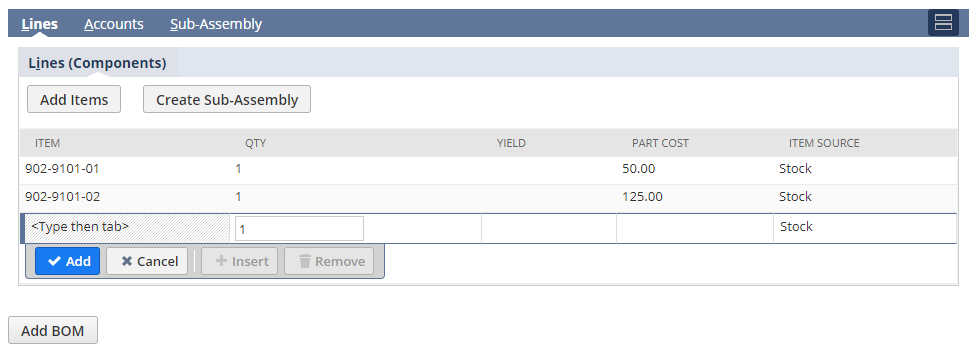

Infographics show the generate Sub-Assemblies

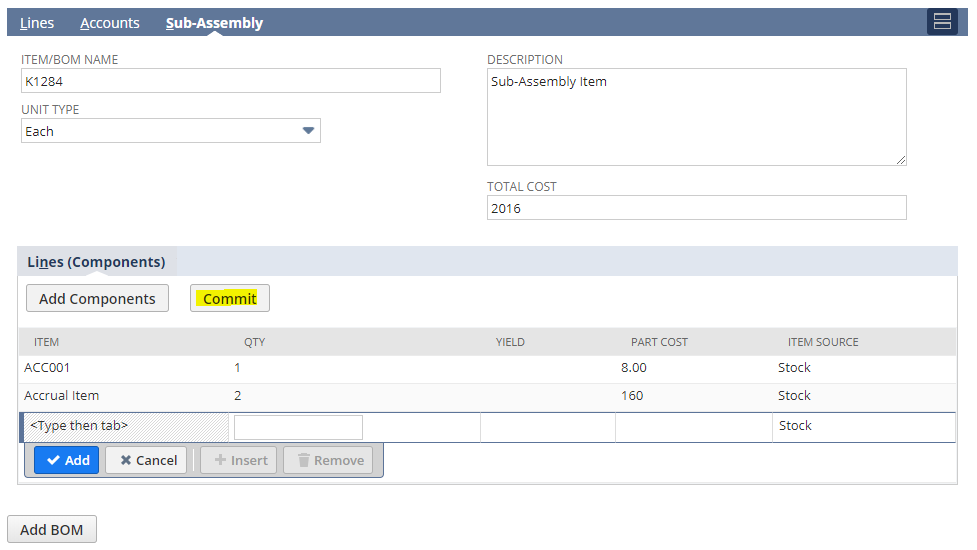

Infographics show the Sub-Assemblies

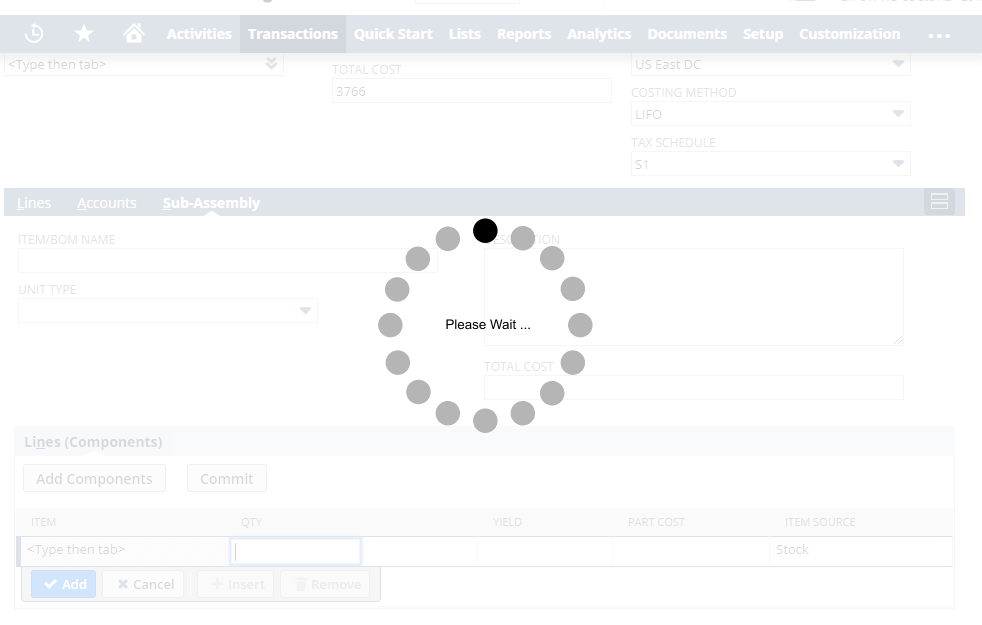

Infographics show the generate Sub-Assemblies wait

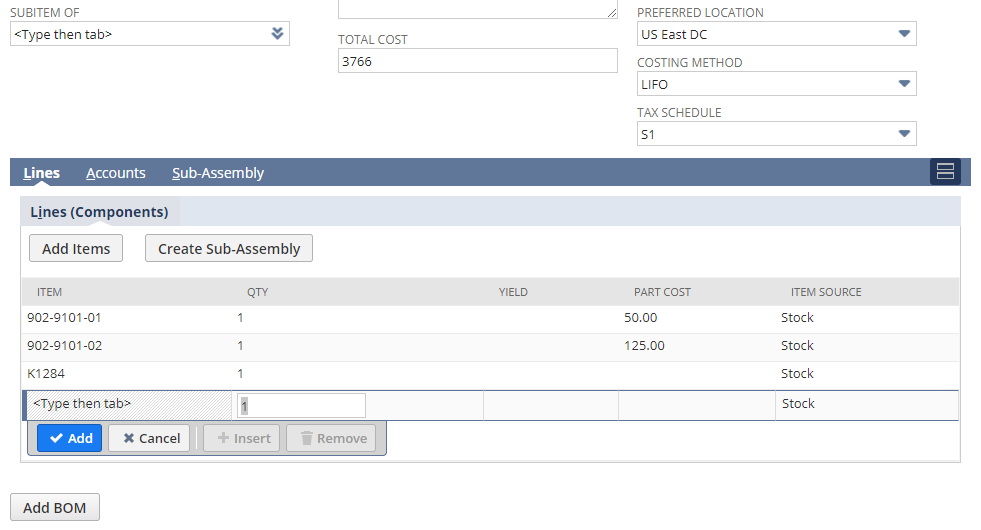

Infographics show the Sub-Assemblies lines
Infographics show the BOM record process waiting

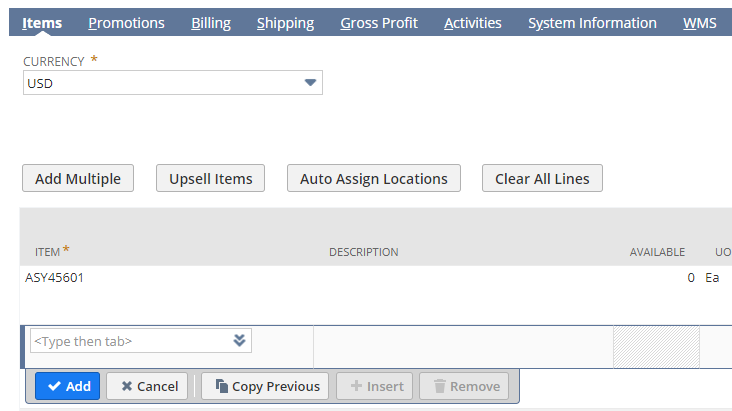

Infographics show the BOM record process
  • The order can be finalized and saved. From the order, the production manager may create a Work Order and send the traveler to the production floor.
  • You will notice that all the components are sourced automatically from the Assembly Item.

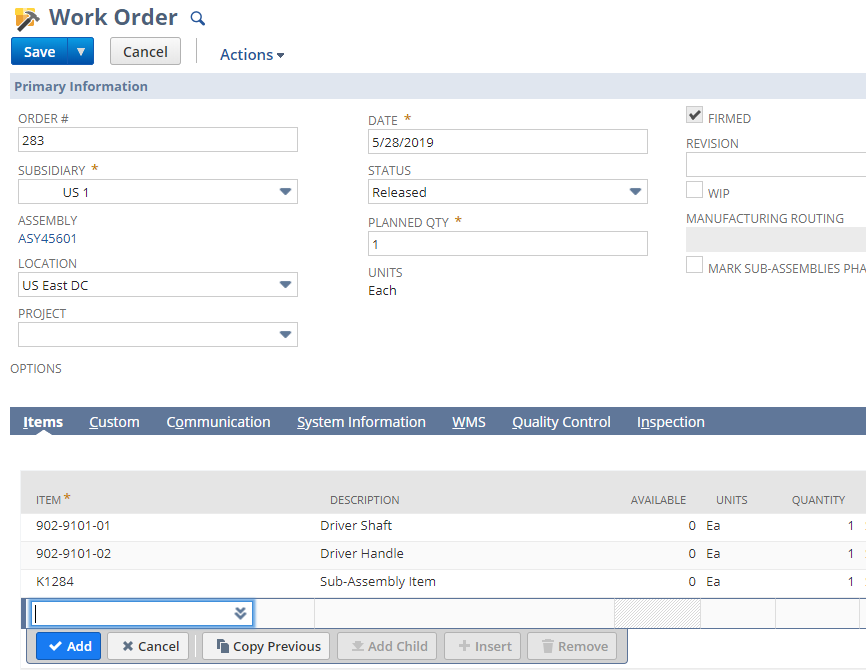

Infographics show the work order search

Maximize Efficiency with NetSuite ERP

Ready to take your manufacturing processes to the next level? Partner with AlphaBOLD to implement NetSuite ERP and unlock enhanced productivity and profitability.

Request a Demo

CSV Import

We added a new feature to the app that allows you to create items through a CSV file upload capability. The CSV import is available on the Sales Order page or as a stand-alone interface.

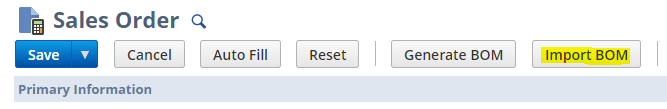

Infographics show the import bom
  • When the button is clicked a new interface will appear that allows the user to upload a CSV file.

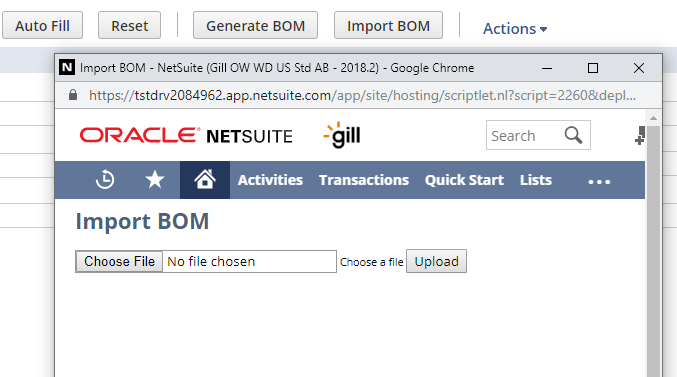

Infographics show the upload a CSV file

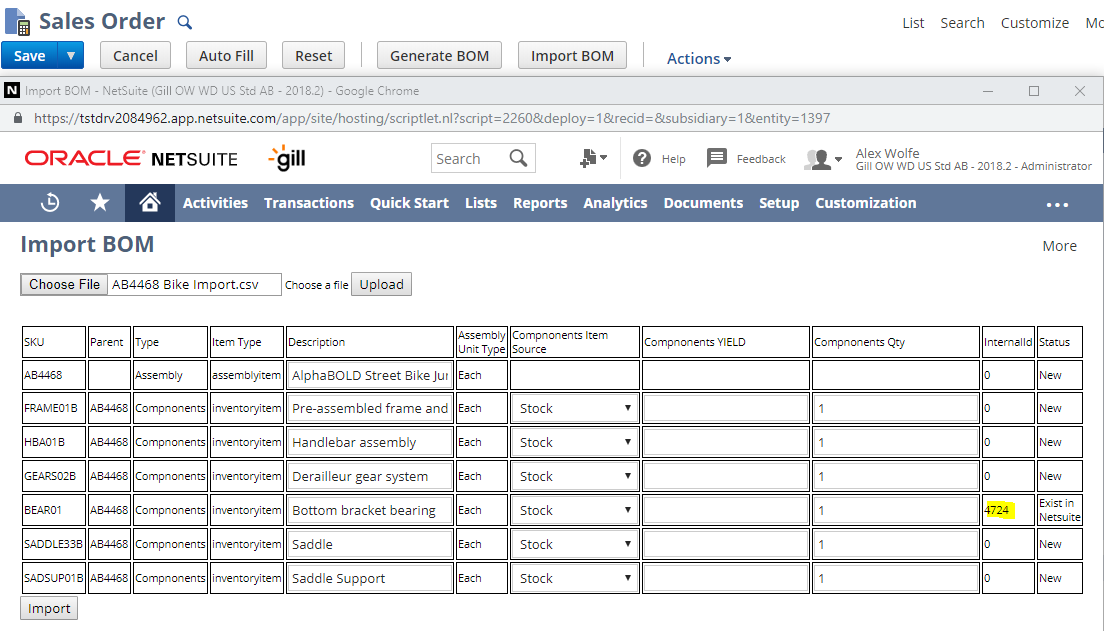

  • When the file is selected and uploaded an intelligent grid will appear that will allow the users to adjust the items before they are imported in the system.

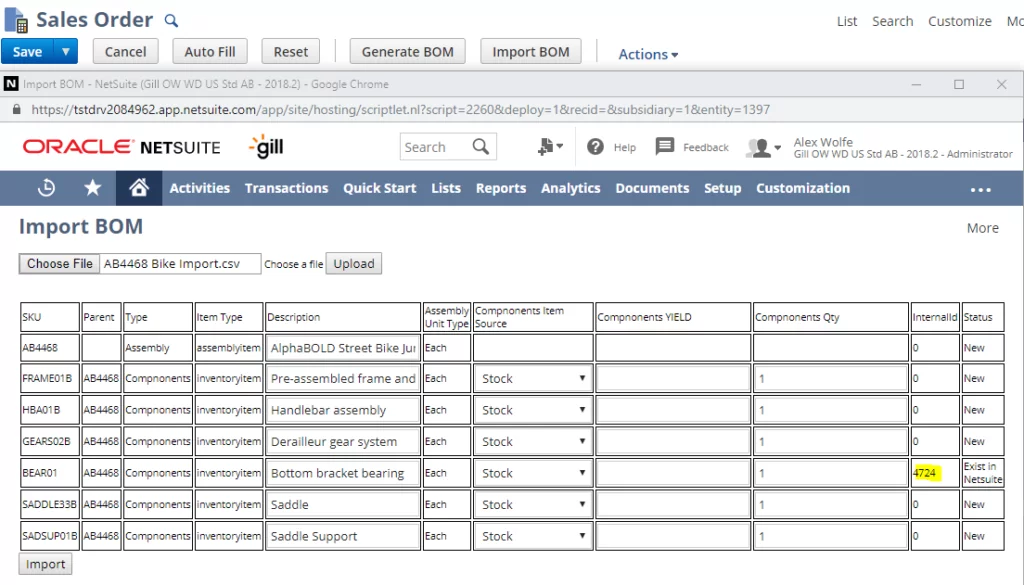

Infographics show the intelligent grid
  • Notice the status column. if a product exists in the system the grid will detect it and it won’t import it. Once the [Import] button is clicked, the app will generate one or more Assembly Items in the system and it will add these to the order.

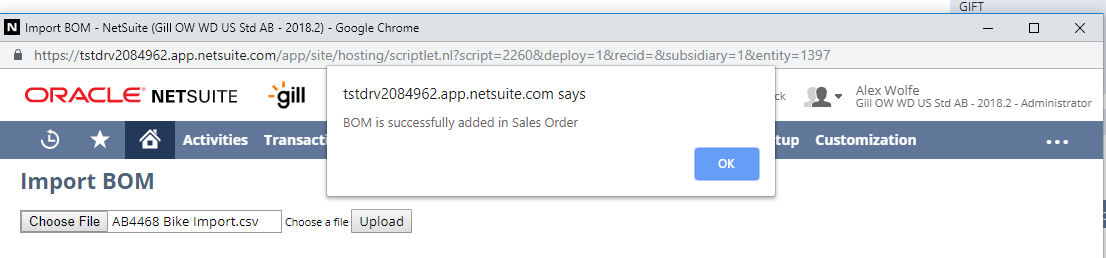

Infographics show the more Assembly Items

Optimize your Operations with NetSuite Integration

Streamline your processes by integrating BOLDAssembly with NetSuite. Contact AlphaBOLD to explore seamless integration solutions tailored to your business needs.

Request a Demo


The item defaults are managed through a configuration record.

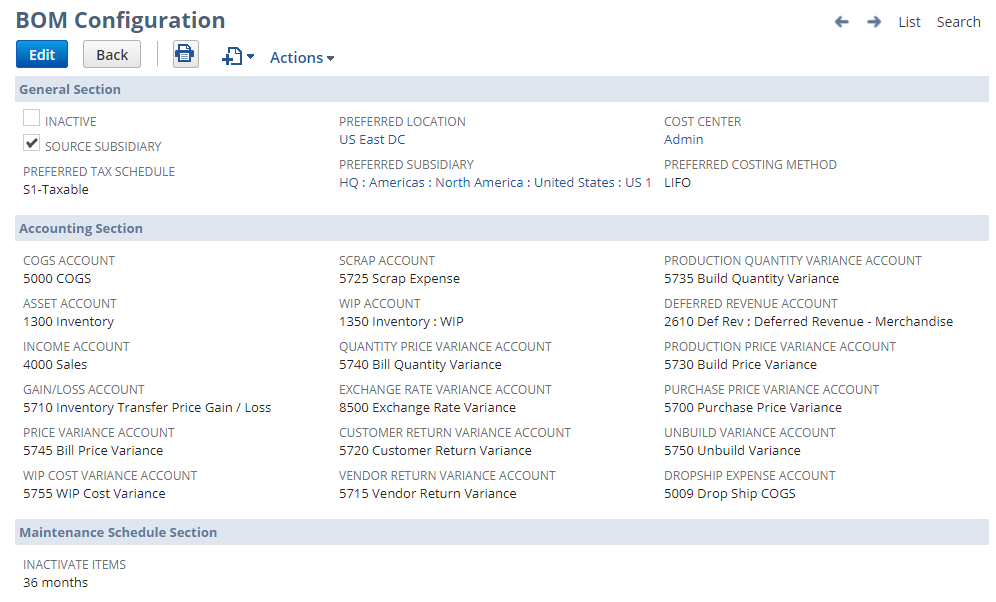

Infographics show the BIM Configuration
  • Note, mandatory fields are sourced from the configuration record and are set right after the installation of our bundle.
  • If the location is not set on the Sales Order, the location is sourced from the configuration record.
  • The solution will list selectable components based on the subsidiary entered / sourced on the ‘Create BOM’ window. This maintains the system integrity and avoids errors.
  • Accounts are defaulted from the configuration page but can be overridden during the BOM generation step.

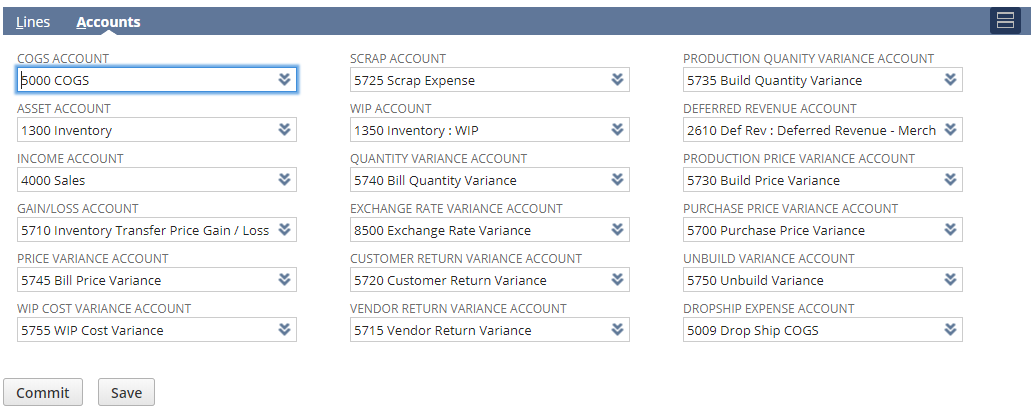

Infographics show the BOM generation step
  • Lastly, the maintenance schedule section is tied to a schedule script that inactivates items that have not been used on any transaction for an extended period. The goal is to keep the system clean and your system’s performance optimal. Options from 1 to 36 months are available.

Read More: Managing Bill of Materials in NetSuite

Features and Future Enhancements

Currently, the following features are supported by this solution

  • Ability to create from 1 to 100 Assembly Item SKU’s from ‘Create BOM’ interface.
  • Ability to create Sub-Assemblies from the same screen*
  • The ‘Create BOM’ interface can be used as a stand-alone form or from the Sales Order screen.
  • Bundle installer is available, some configuration is required (Configuration Record)
  • Maintenance scheduled routine inactivates unused items.
  • CSV Import Tool for importing BOM(s) from external CAD systems*
  • Component and BOM cost tracking while building the Assembly Item*

* Newly added features.

* Newly Added Features:

  • Additional support for process manufacturing (formula and recipe records)
  • Route defaulting for WIP and operations view
  • BOM mass change screen (mass update of BOM components)
  • CAD file conversion using the CSV Import tool

Thank you for your attention and feel free to comment on this functionality and request additional features. Our goal is to add as many features as possible, all the while keeping ‘BOM Generator’ simple and easy to use.
